| Nominal Capacity | 15000mAh |
| Battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃2℃ |
| Nominal Voltage | 3.6 V |
| Maximum Continuous Current | 250mA |
| Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ |
| Maximum Pulse Discharge Current | 500mA |
| Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ |
| Storage Condition | Temperature ≤ 30℃ Humidity ≤ 75%RH |
| Operating Temperature | -55℃ to +85℃ |
| Battery Dimension | See drawing on pag |
| Max Weight | 100.0g |
| Self-discharge Rate | 2% |
| Max self-discharged rate at ambient temperature 23±2℃ |
| Shelf Life | 10 years |
| Ambient temperature 23±2℃ |
1. Battery Characteristic
Nominal voltage up to 3.6 V
Energy density up to 590 Wh/kg
More than 90% of the capacity could be output at a stable voltage
- Wide Operating Temperature Range
-55°C to +85°C
Self discharge rate is less than 2% per year at room temperature
Glass-to-metal seal
Bobbin and spiral structure is available for different applications
2. Main Applications
Smoke detectors, security alarms, seismometers, digital door lock system, etc.

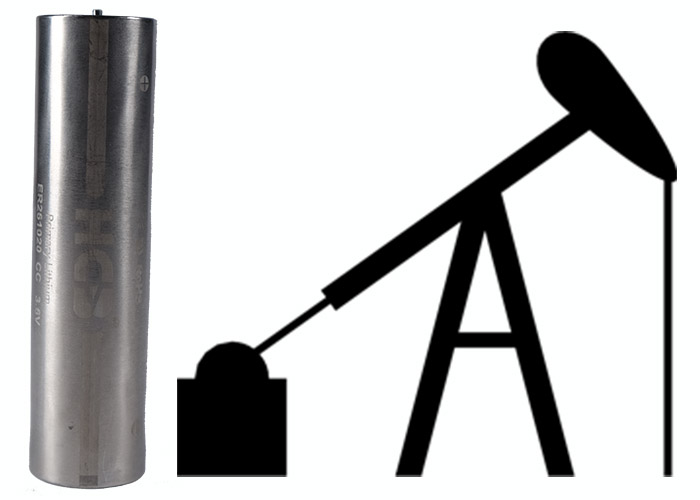

Well pressure meters, float meters, logging while drilling(LWD), measure while drilling(MWD), etc.
3. Use Warning
- This battery is a non-rechargeable battery.
- DO NOT CHARGE THE BATTERY!
- Do not use if the battery casing is damaged.
- Please discharge the battery for a few minutes with 100mA.
- Don't use different models of battery in series.
- This is not a high drain battery, please don't use it for any applications with discharging current > 200 mA!
- The storage area should be clean, cool (not exceeding +30 Deg C), dry and ventilated.
4.Bobbin Benefits
- Excellent safety record, high capacity
- Typical Applications
- Low power consumption & long shelf life equipment,
- like calculator, industrial PC CMOS, memory support power, etc.
5.Manufacturing Advantages
- The technology in HCB is advanced and automatic;
- The cathode manufacturing process in HCB is advanced and unique;
- The main solutions are high power, high capacity(hermetic & semi sealing). Low temperature etc;
- Combing suggestions and multiple cascade and parallel connecting ways are workable for HCB.
