| Nominal Capacity | 2500mAh |
| Battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃ |
| Nominal Voltage | 3.0 V |
| Maximum Continuous Current | 1200mA |
| Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ |
| Maximum Pulse Discharge Current | 1500mA |
| Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ |
| Storage Condition | Temperature ≤ 30℃ Humidity ≤ 75%RH |
| Operating Temperature | -40℃ to +70℃ |

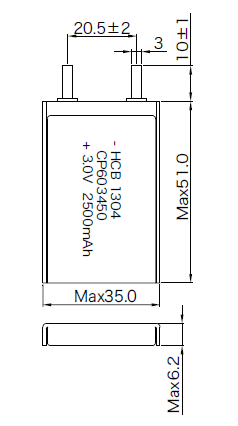

| Battery Dimension | See drawing on pag |
| Max Weigh | 16.0g |
| Self-discharge Rate | 2% |
| Max self-discharged rate at ambient temperature 23±2℃ |
| Shelf Life | 10 years |
| Ambient temperature 23±2℃ |

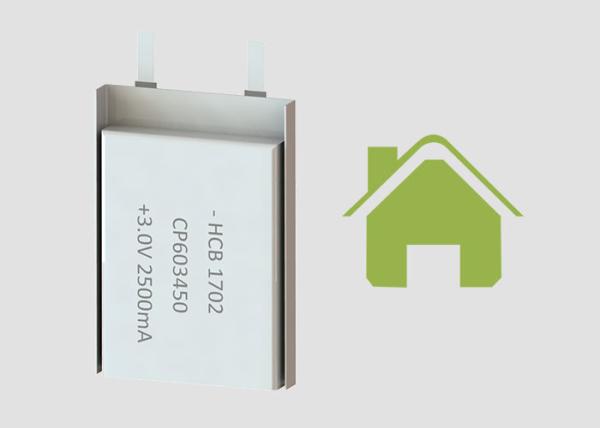

1. CP603450 Lithium Primary Li-MnO2 Soft Battery 2500mAh Characteristic
Nominal voltage up to 3.0 V
Energy density up to 450Wh/kg
- Wide Operating Temperature Range
-40°C to +70°C
Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin
Battery of variable dimensions can be selected to fit in the customer’s design
Custom batteries and battery packs are also available
The structure of the battery offers greater safety to meet customer’s requirement for special applications
2. CP603450 Lithium Primary Li-MnO2 Soft Battery 2500mAh Main Applications
Automatic meters (water meter, electric meter, gas meter), conventional meters, etc.
Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.
Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.
3. HCB Lithium Primary Battery Manufacturing Advantages
- It has passed more than 9 years since the first Soft Pack Li-MnO2 Battery was produced by HCB;
- There are eight patents applied by HCB in Soft Pack Li-MnO2 Battery;
- More than 15 million pieces Soft Pack Li-MnO2 Battery are made and sold by HCB until now;
- So many terminal customers make HCB experienced in both civil and industrial applications.
4. Use Warning
This battery is a non-rechargeable battery.
DO NOT CHARGE THE BATTERY!
Do not use if the battery casing is damaged.
Please discharge the battery for a few minutes with 100mA.
Don't use different models of battery in series.
This is not a high drain battery, please don't use it for any applications with discharging current > 200 mA!
The storage area should be clean, cool (not exceeding +30 Deg C), dry and ventilated.
